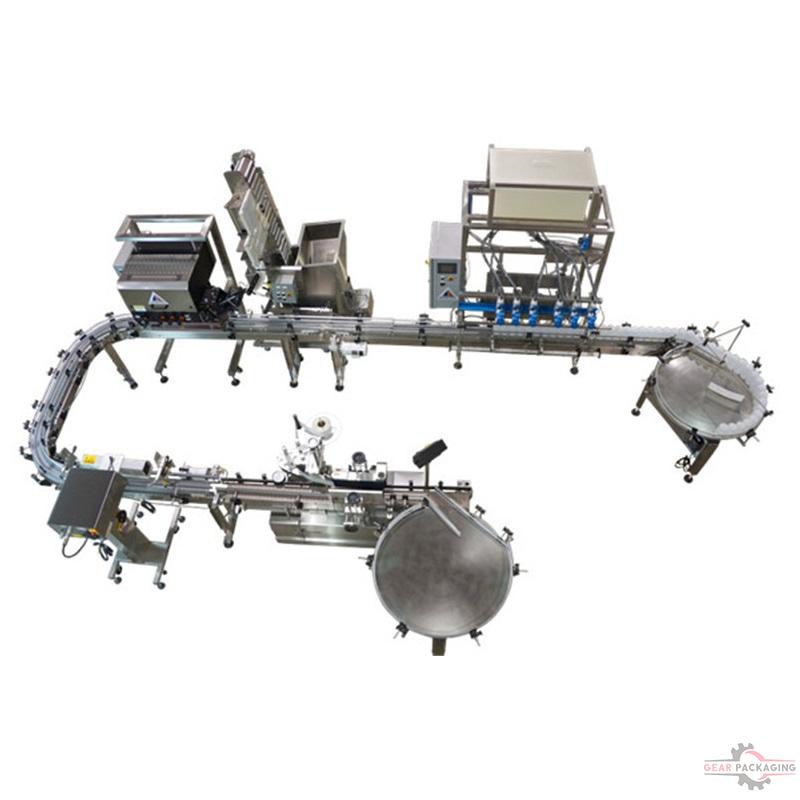

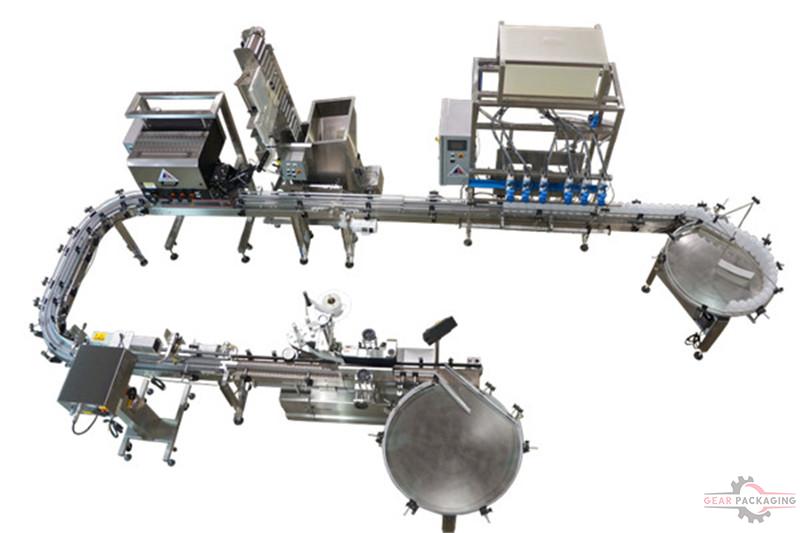

Customized Packaging Line

  • Automatic pressure liquid filling line
Automatic pressure liquid filling line

Automatic pressure liquid filling line

  • Model:GP-AP
  • Type:PRESSURE LIQUID FILLING LINE
  • Packaging Type:Bottles
  • Dimension :Full conainer shipping
  • Product description: AUTOMATIC PRESSURE LIQUID FILLING LINE
  • INQUIRY


Product introduction:


This filling machine adopt PLC controller, Photoelectric sensor, pneumatic operation in the integration of high-tech filling equipment, This model is divided into pressure type filling, normal pressure filling, diving type filling, especially Diving type filling is mainly used for easy foaming liquid filling, Design a set of filling body, diving termite pipe can dive to the bottom of the bottle in order to eliminate the bubbles, measured precisely, no bubbles, no drop leak.

Suitable for filling mineral water, fruit juice, tea drinks, soy sauce, vinegar, spices, proprietary Chinese medicine, biological agents, pesticides, daily necessities, etc. It can be used in the 300-10000 ml bottle of form filling

Main advantages:


1, machine USES special filling valve, high-power vacuum pump to ensure after filling the liquid level.

2, filling the sealed bottle, liquid along the bottle wall dirty, effective control of the filling liquid impact caused by the bubble, to prevent the spill.

3, machine frequency control of motor speed, filling speed, the overload protection device, card bottle of downtime, boot soft start, elastic TuoPing device, is used to reduce the breakage of the bottle.

4, filling quantity adjustment by add and subtract the filling valve gasket, convenient and quick.

5, large range of filling machine, filling volume can be adjusted in 100 ml to 1500 ml.

6, wide applicable bottle height can be adjusted between 180 mm and 380 mm mm (beyond range can be customized).

7, main seal made by imported silica gel, the main parts manufactured by food hygiene standard of 304 stainless steel.
Parameters

motor power 3KW
Overall  dimension 1350*1200*2200mm
Processing customized Yes
Filling heads 2-12
Apply high bottle 180mm-380mm
Production capacity 1000-3000bottle/h
Filling accuracy ±1%
Packing type bottle
motor power: 3KW
Degree of automation automatic
Filling quotas 24hours
Filling quantity 100ml-1500ml
Apply to industry Wine, soy sauce, rice wine, fruit wine, drink


Basic Info


Automatic Grade: Fully Automatic
Filling Valve Head: Multi-Head
Dosing Device: Plunger
Packaging Container Lifting Structure: Pneumatic Lifting
Packaging: Bottle
Filling Speed: 15-25 Bottles
Overall Dimension: 1350*1200*2200mm
Apply Bottle Height: 180mm-380mm
Packing Type: Bottle
Trademark: GP
Specification: CE
HS Code: 8422303090

Type: Volumetric Filling Machine
Material Type: Liquid
Feed Cylinder Structure: Multi-Room Feeding
Filling Principle: Atmospheric Pressure
Structure: Linear
Packaging Material: Plastic
Mterial: Stainless Steel
Processing Customized: Yes
Filling Accuracy: ±0.5%
Motor Power: 3kw
Transport Package: Wood Case
Origin: China
