Other Machinery

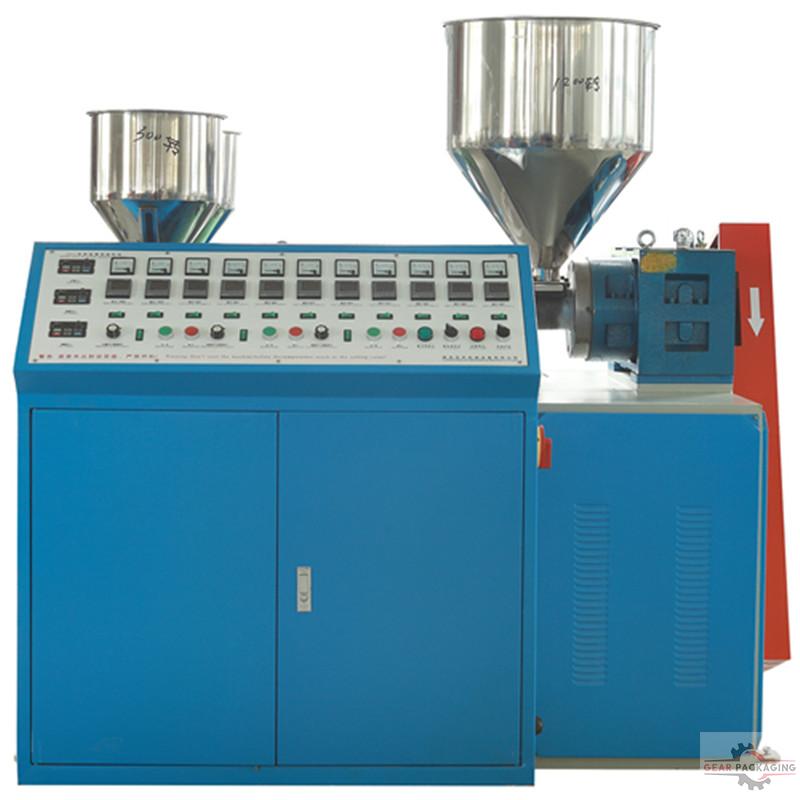

  • Dual Color Automatic Straw Making Machine double color plastic tube instant straw two color straw making machine equipment
Dual Color Automatic Straw Making Machine double color plastic tube instant straw two color straw making machine equipment

Dual Color Automatic Straw Making Machine double color plastic tube instant straw two color straw making machine equipment

  • Model:GP-012
  • Type:Straw making machine
  • Packaging Type:Straws
  • Dimension : 9m×1.5m×1.7m
  • Product description: Dual Color Automatic Straw Making Machine double color plastic tube instant straw two color straw making machine equipment
  • INQUIRY

Description:

Dual Color Automatic Straw Making Machine double color plastic tube instant straw two color straw making machine equipment

    This line is composed of head unit, cooling system, traction device, with a variety of specifications such as single color extrusion, two color and two color co-extrusion, three color extrusion, etc.
Characteristics
      1. Wide application: drinking straw, candy bar, pen tube, cotten swab stick, medical tube, all kinds of toys tube, etc.

      2. Easy to operate. One operator is enough to run the whole line

      3. Cut form: Diversified in cut-end: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°

      4. With stable output and wide range of color options. (single, two, three or multi-color stripes, straight or spiral)

This line is composed of head unit, cooling system, traction device, with a variety of specifications such as single color extrusion, two color and two color co-extrusion, three color extrusion, etc.

Characteristics

      1. Wide application: drinking straw, candy bar, pen tube, cotten swab stick, medical tube, all kinds of toys tube, etc.

      2. Easy to operate. One operator is enough to run the whole line

      3. Cut form: Diversified in cut-end: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°

      4. With stable output and wide range of color options. (single, two, three or multi-color stripes, straight or spiral)

Parameter

Color

single

 Two

 Three

Model

GP-011

GP-012

GP-013

Main parts

Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor,

 hauling cutting system, single color, two color or tricolor pipes can be realized.

Power supply

Main screw

380v ,3phase,50hz,7.5kw(VFD)

Sub-screw

/

0.75kw

0.75×2kw

Heating

7kw

9.56kw

12kw

Hauling motor

0.75kw(VFD)

Cutting motor

0.75kw(VFD)

Total power

16.5kw

20kw

22.5kw

Temperature Controller

5sets

8sets

11sets

Electric control cabinet

1set

1set

1set

Automatic Counting Device

1set

1set

1set

Way of Hauling

By rubber roller

Way of cutting

Rotatory cutting

Cooling water tank

Usually 3.5m, can be adjusted updown, right left, forward backward.

Option

Vacuum pump (0.75kw)

Air compressor (2kw)

Specification of Pipe

Material

PP PE etc.

Diameter

2mm~13mm

Length

Customizable

Speed

600~1000pcs/min

Color

Single

Two

Three

Straight or spiral strips

Cutting End

90°/90°,90°/45°,90°/60°,45°/45°,60°/60

Machine dimension L×W×H

9m×1m×1.7mm

9m×1.5m×1.7m

9m×2m×1.7m

Weight of equipment

1000kg

1500kg

2000kg

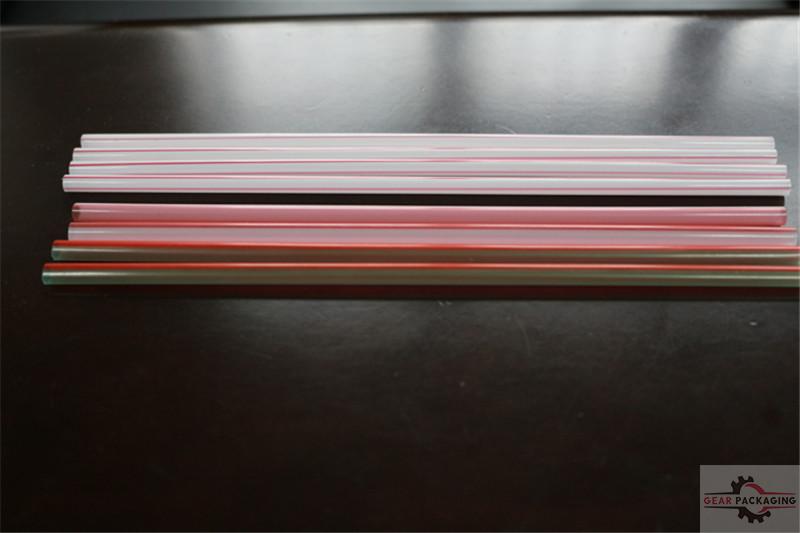

Sample pictures of two color straws:
