Form-Fill-Seal

  • 250g coffee powder packing machine V.F.F.S. Bagger Complete Systems
250g coffee powder packing machine V.F.F.S. Bagger Complete Systems

250g coffee powder packing machine V.F.F.S. Bagger Complete Systems

  • GP-420 Series
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1080x1300x1400mm
  • Product description: 250g coffee powder packing machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

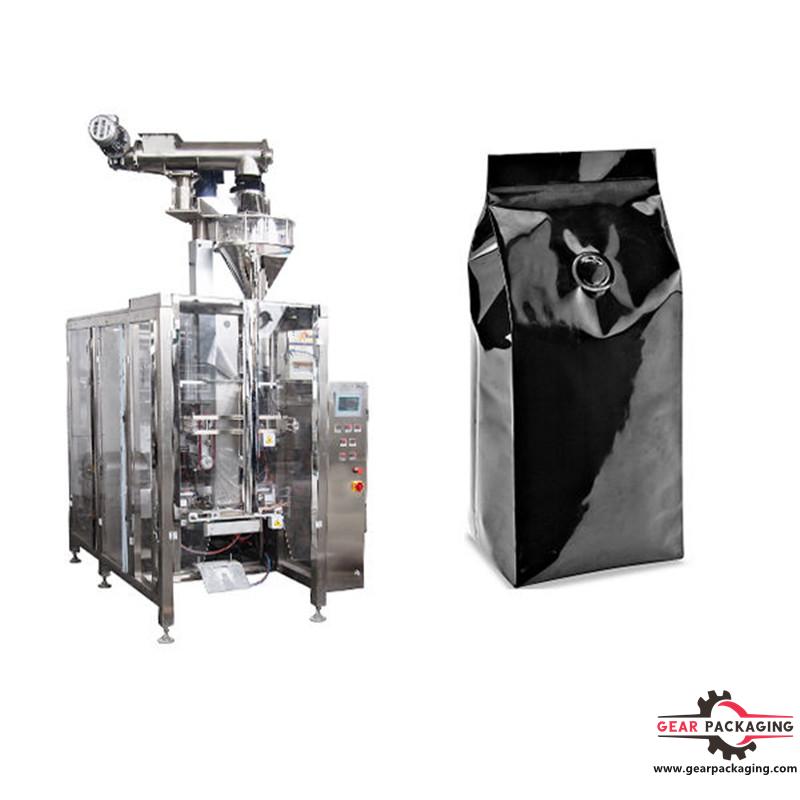

250g coffee powder packing machine V.F.F.S. Bagger Complete Systems


Applications


Flour packing machine is suitable for fluidity powder, such as flour, milk powder, bean powder, spices powder, coffee powder etc.



Features


1)   Electronic weighting system makes the weight of packing more accurate and speed faster.

2)   Multilingual color touch screen to make the operation is much easilier and efficient to meet different clients' needs.

3)  Imported PLC computer has stable running and parameters adjustable.

4)  Imported servo film transport system,imported color code sensor make position and performance stable.

5)  Kinds of automatic alarming protective function furthest reduce the unnecessary loss.



Technical Specifications


Type GP-420 Series
Bag length 50-300mm(L)
Bag width 50-200mm(W) [the max is 220mm]
Max width of roll film 420mm
Packing speed 5-60bags/min
Measuring range 150-1200m
Air consumption 0.65mpa
Gas consumption 0.3m3/min
Power voltage 220VAC/50Hz
Power 2.2 KW
Dimension 1080x1300x1400mm
Weight 600 kg



Auger Filler


Auger Filler for powder, range 100-3000g, speed up to 80 discharges per min.

Application:

Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.

Features:

SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder.
Compact system, stable and durable.
Low noise, maintenance free Servo motor driven, precious, fast, high torque, long life, speed adjustable.
Air proof hopper, dust proof with easy nitric flushing. Discharge gate with dust collector.
